Vancouver Dark Grey Laminate Pocket Door Set

Vancouver Dark Grey Laminate Pocket Door Set

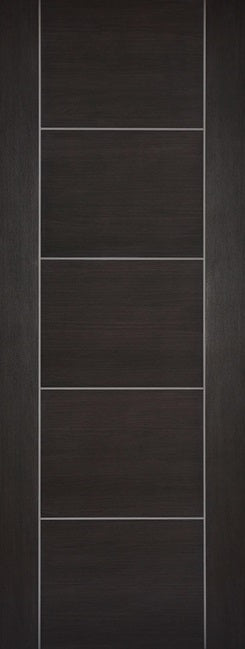

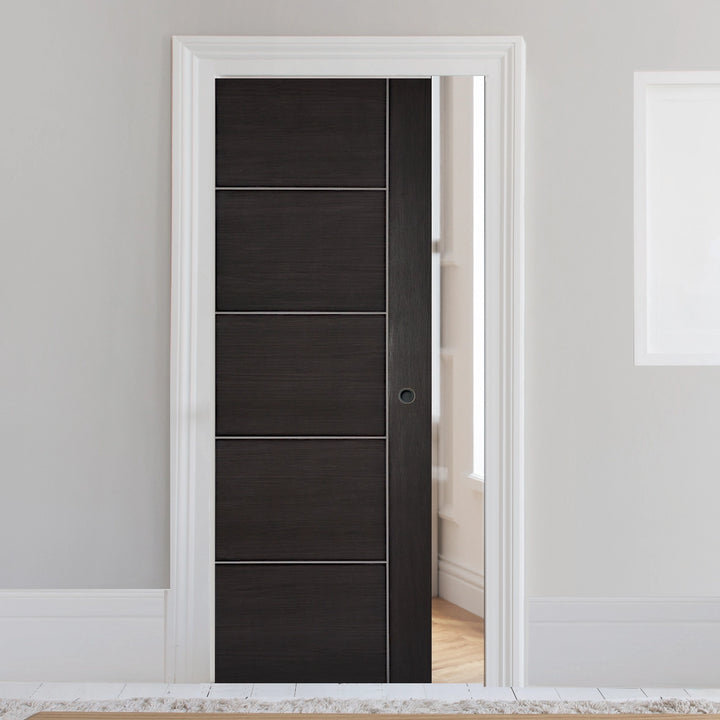

Transform your home with the Vancouver Dark Grey Laminate Pocket Door Set. Featuring the sought-after five panel Vancouver design, this set adds a modern and sophisticated touch to any room, the laminated finish enhances durability and creates a sleek aesthetic.

This door system allows you to slide the door straight in to the discreet pocket which is hidden within the cavity. The pocket frame is constructed from galvanised steel and is supplied complete with the track and fixings. The cassette system is supplied complete with a comprehensive timber lining kit (jambs) to finish the installation perfectly.

The door jambs are available in two size options, 100mm or 125mm, If you are using 3" studwork then you would require 100mm jambs as this would give you a finished wall thickness of 100mm when finished with 12.5mm plasterboard. If you are using 4" studwork then you would require the 125mm jambs as the overall wall thickness would be 125mm when using 125mm plasterboard.

There is no bottom track or threshold strip, as with all our pocket door systems the single pocket door frame is top hung from a track. Inside the track there are runners which are attached to the top of the door via a bracket. This means there is no threshold strip or track in the floor and your flooring can continue through the opening undisturbed. Accessories such as soft door closers, flush door pulls and bathroom locks can all be purchased separately.

• 35mm Thick door supplied fully finished
• Strong galvanised steel frame.  A quick-click frame that assembles into a complete unit comprising of a full pocket and track.
• Runners are tested to 100,000 cycles (that’s around 25 years of average use
• Can be adjusted to determine how far the door protrudes from the pocket.
• The jamb kit is made from finger jointed unfinished ready to paint/stain.
• Door guide slots into a channel on the underside of the door. Not visible but ensures that if your door warps it continues to slide smoothly
• 15 year guarantee on the complete steel pocket system and runners.

Overall Frame Dimensions with Dark Grey Laminate Internal Door (Width x Height)

610 x 1981 Door Panel = 1273 x 2056 mm Pocket Frame

686 x 1981 Door Panel = 1449 x 2056 mm Pocket Frame

762 x 1981 Door Panel = 1625 x 2056 mm Pocket Frame

838 x 1981 Door Panel = 1701 x 2056 mm Pocket Frame

Our Pocket door systems can be supplied in made to measure options. Please contact us for more information on bespoke options.

Please be aware you may receive 2 deliveries, the frames are usually dispatched within 24/48 hours and the doors will be delivered within 3/5 working days
