Telescopic 4 Door Sliding System

Telescopic 4 Door (2+2) Sliding System

This system is designed for use with interior doors,

Our Telescopic range allows multiple wooden doors to become neatly stacked sliding partitions. Connected by a toothed belt and pulley system, doors are able to travel simultaneously with minimal friction and noise.

The system is discreet in its design as it requires no guide channel, allowing for a seamless walkway between rooms.

The system is suitable for wood-framed doors of flush, panelled or glazed construction and can cater to multiple door configurations.

Please note: TEL80/SIM is a made-to-order item, delivery date will be provided upon order confirmation.

• For sliding timber doors weighing up to 120kg each
• Allows multiple doors to travel simultaneously

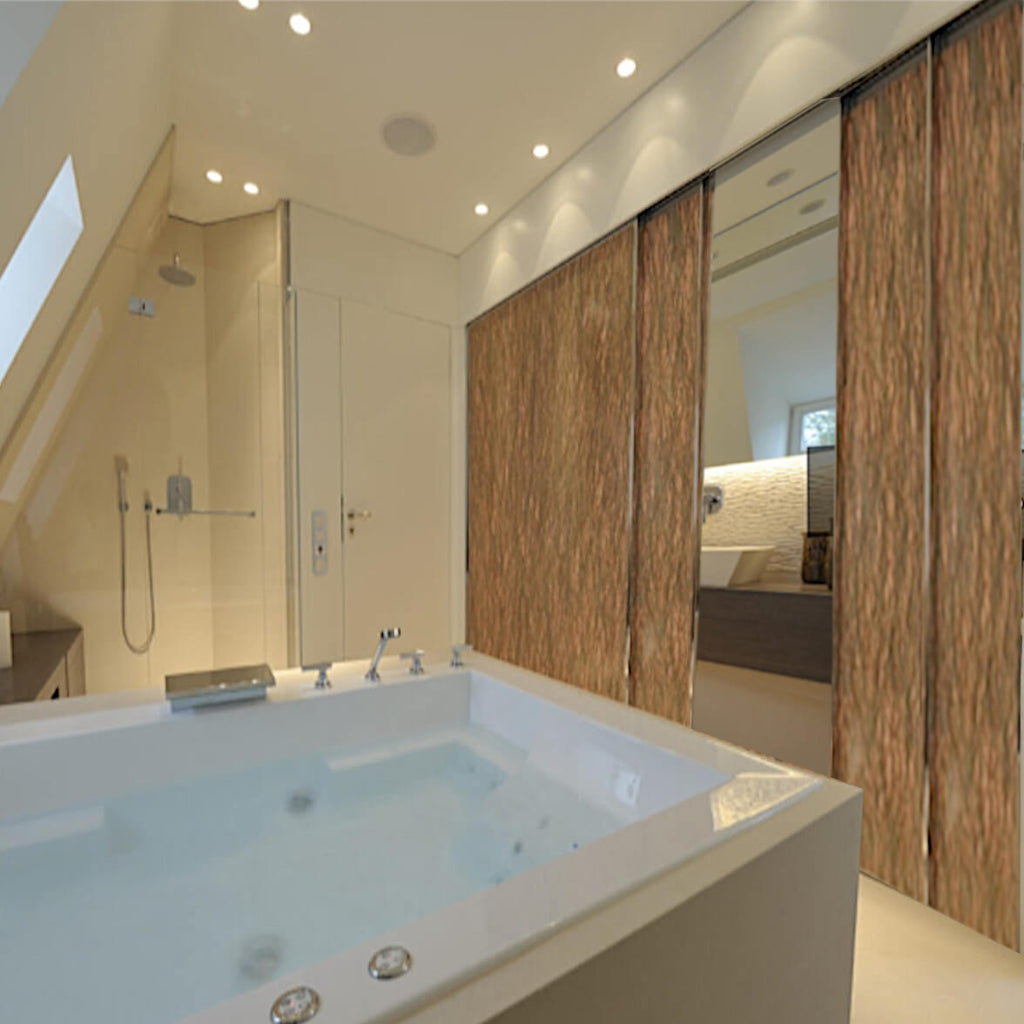

• Ideal for sliding partitions as doors can be neatly stacked to one or both sides of the opening

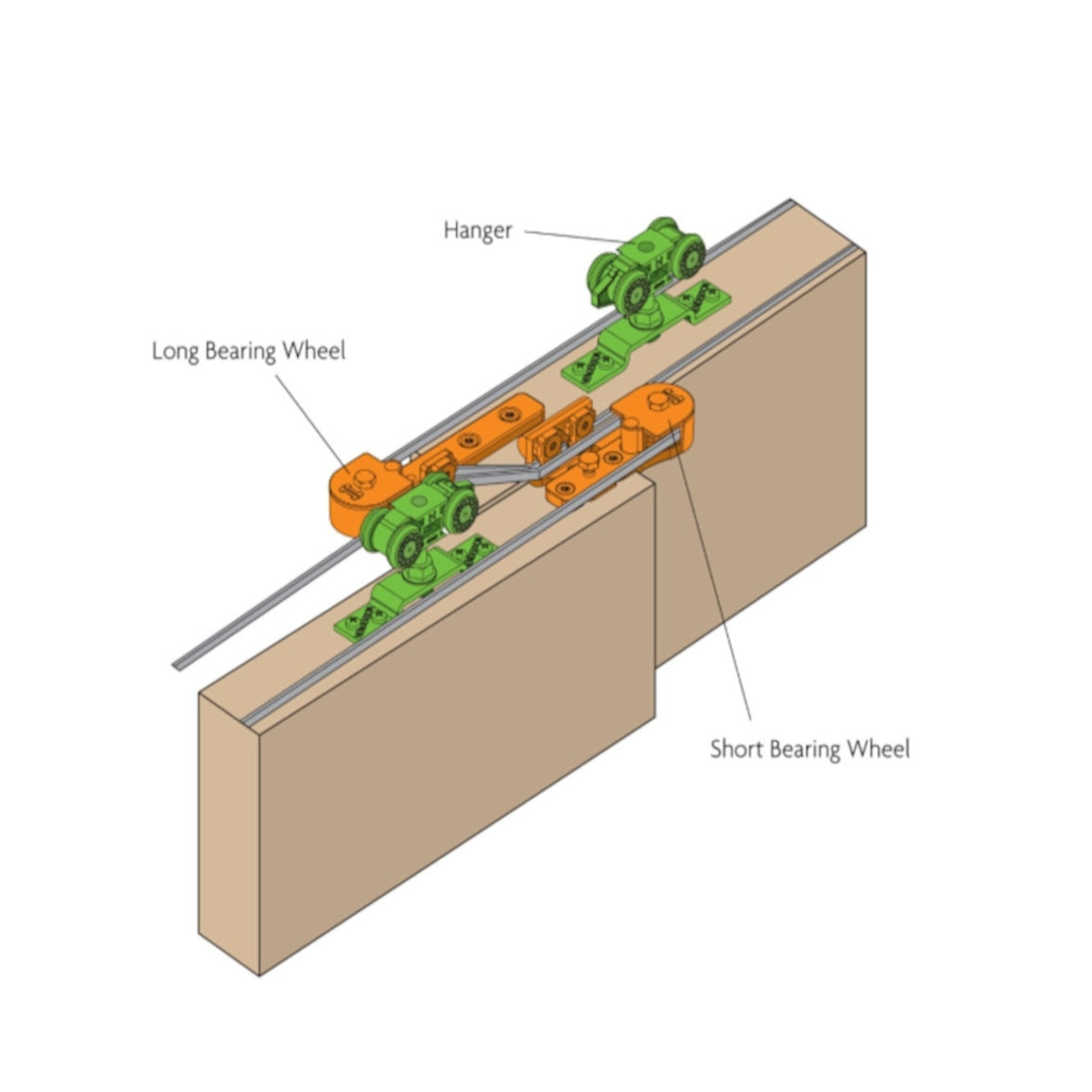

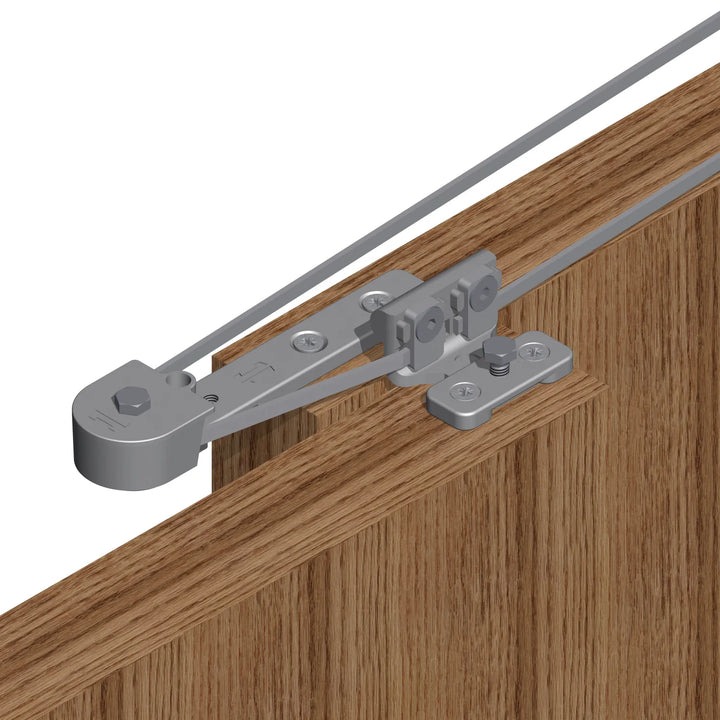

• All door leaves are linked together via a toothed belt and pulley system
• No guide channel is required, allowing for a seamless walkway between rooms
• Tracks must be purchased in addition to the kit (see optional extras)
• When ordering tracks, make sure the quantity of tracks is multiplied by the number of doors being used with the system

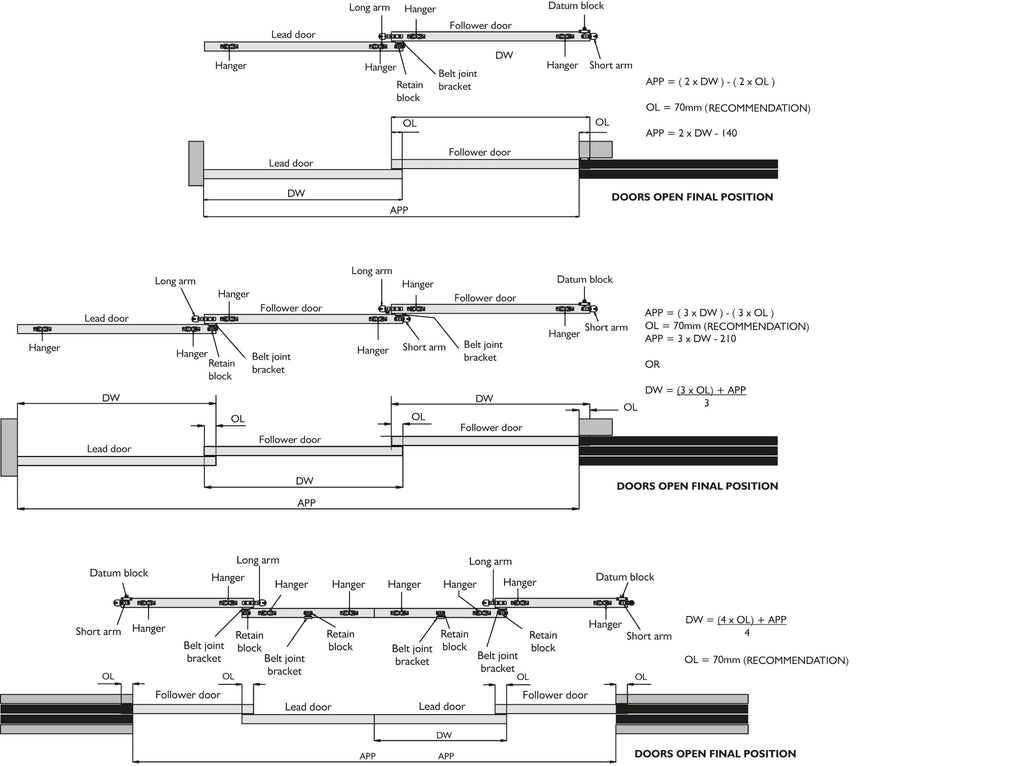

• Recommended Overlap 70mm
• Min. door width 500mm
• Max door width 1200mm
• Door thickness 35 - 44mm
• Max door weight 120kg

PLEASE NOTE: Each door will require its own track, for a 2-door system you will need to order two tracks, a 3-door system will require three tracks, and a 2+2 (4 door) system will require 4 tracks.
