Charcoal Soho 4L Double Pocket Door System
Product Code: E21678
Charcoal Soho 4L Double Pocket Door System
Product Code: E21678

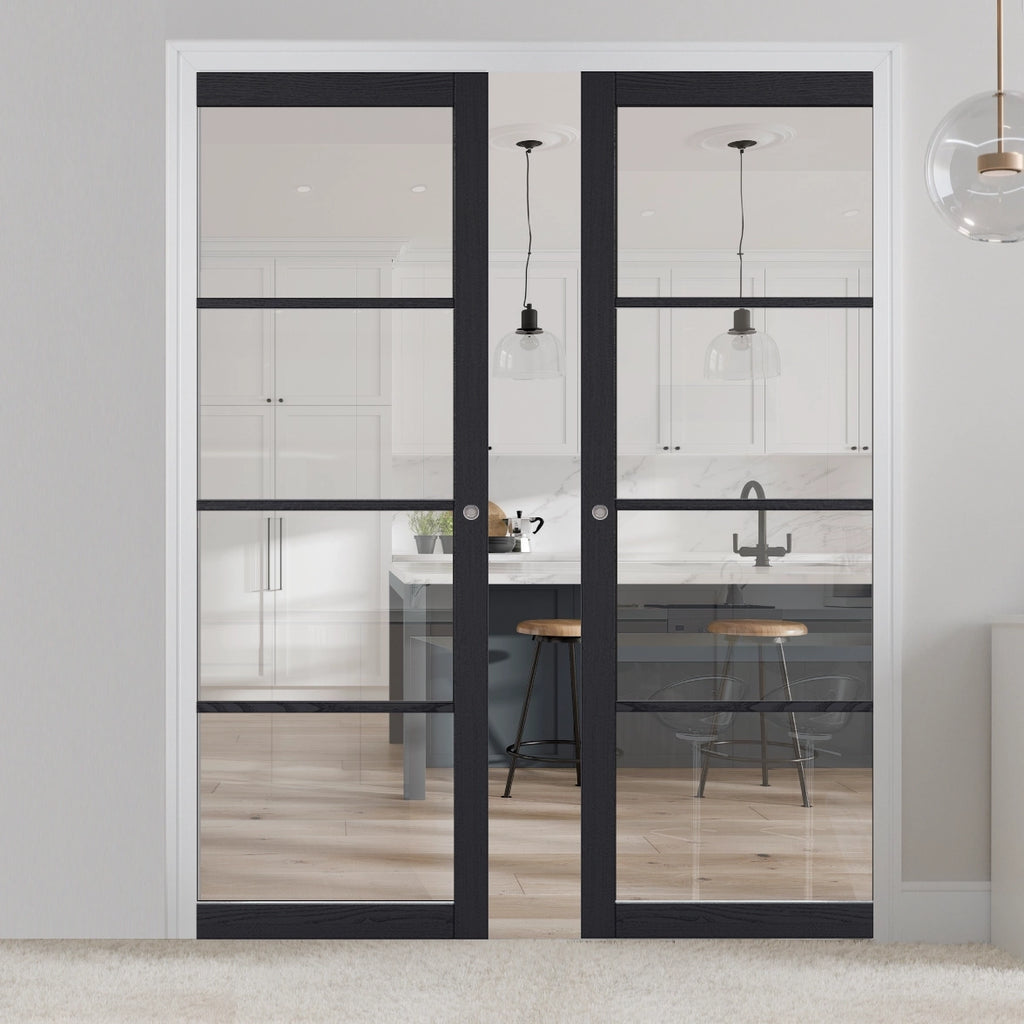

Soho 4L Charcoal Double Pocket Door Set
The Soho 4L Double Pocket Door System is supplied complete with the Soho 4L Double Doors. This double door system allows you to slide the doors straight in to the discreet pockets which are hidden within the cavity. This pocket frame is constructed from galvanised steel and is supplied complete with the track and fixings. The cassette system is supplied complete with a comprehensive timber lining kit (jambs) to finish the installation perfectly.
The door jambs are available in two size options, 100mm or 125mm, If you are using 3" studwork then you would require 100mm jambs as this would give you a finished wall thickness of 100mm when finished with 12.5mm plasterboard. If you are using 4" studwork then you would require the 125mm jambs as the overall wall thickness would be 125mm when using 125mm plasterboard.
There is no bottom track or threshold strip, as with all our pocket door systems the pocket door frame is top hung from a track. Inside the track there are runners which are attached to the top of the doors via a bracket. This means there is no threshold strip or track in the floor and your flooring can continue through the opening undisturbed. Accessories such as soft door closers, flush door pulls and bathroom locks can all be purchased separately.
- Supplied complete with two Soho 4L doors
- 35mm Thick Doors
- Strong galvanised steel frame. A quick-click frame that assembles into a complete unit comprising of a full pocket and track.
- Runners are tested to 100,000 cycles (that’s around 25 years of average use
- Can be adjusted to determine how far the doors protrude from the pockets.
- The jamb kit is made from finger jointed fir that is unfinished ready to paint/stain.
- Door guide slots into a channel on the underside of the doors. Not visible but ensures that if your doors warp it continues to slide smoothly
- Maintenance-free track and runners
- 15 year guarantee on the complete steel pocket system and runners
Overall Pocket Frame Dimensions with Soho Doors (Width x Height)
610 + 610 x 1981 Door Panels = 2464mm x 2056mm Pocket Frame
686 + 686 x 1981 Door Panels = 2816mm x 2056mm Pocket Frame
762 + 762 x 1981 Door Panels = 3168mm x 2056mm Pocket Frame
838 + 838 x 1981 Door Panels = 3320mm x 2056mm Pocket Frame
Our Pocket door systems can be supplied in made to measure options, please contact us for more information on bespoke options.
PDF Downloads
Delivery
Your doors will be delivered on our own vehicles or through a trusted carrier normally within 3-5 days. The standard delivery rate to most areas is £35.00. The cost depends on the number of doors and delivery address. Correct shipping costs will be provided at checkout. For more details you can view our delivery rates here.
Express Delivery
If you need express delivery then we can offer a next day delivery service on selective products, please call us on 01422 387331 and we will do our best to help.
Collection
Orders can be collected from store, or a local warehouse there is no charge for this service. Please select the collection option in checkout. We will contact you to arrange a collection slot once your order is ready to be collected.
Gaurantee
Our doors are guaranteed for ten years from the date of the delivery. We are proud to stand by our doors, and we have no hesitation in offering a conditional 10 Year guarantee against faulty materials or workmanship. Should one of our doors be found to be defective upon delivery or develop a fault due to faulty materials or workmanship within 10 Years of delivery, at our discretion we will offer the original purchaser the option of repair, replacement or refund. Read more about our 10 year gurantee, click here.
