Shaker 4 Light Obscure Glazed Fire Pocket Door System
Product Code: E25864
Shaker 4 Light Obscure Glazed Fire Pocket Door System
Product Code: E25864
Shaker 4 Light Obscure Glazed Fire Pocket Door System
This Fire Pocket Door System is supplied complete with the Oak Shaker 4L Obscure Glazed Fire Door. This door system allows you to slide the door straight in to the discreet pocket which is hidden within the cavity. The pocket frame is constructed from galvanised steel and is supplied complete with the track and fixings. The cassette system is supplied complete with a comprehensive timber lining kit (jambs) to finish the installation perfectly.
The door jambs are available in finished wall thickness of 100mm size option, jamb kits are made from a very particular hardwood called Pterygota bequaertii commonly known as Koto (supplied unfinished) and pre-treated with intumescent primer.

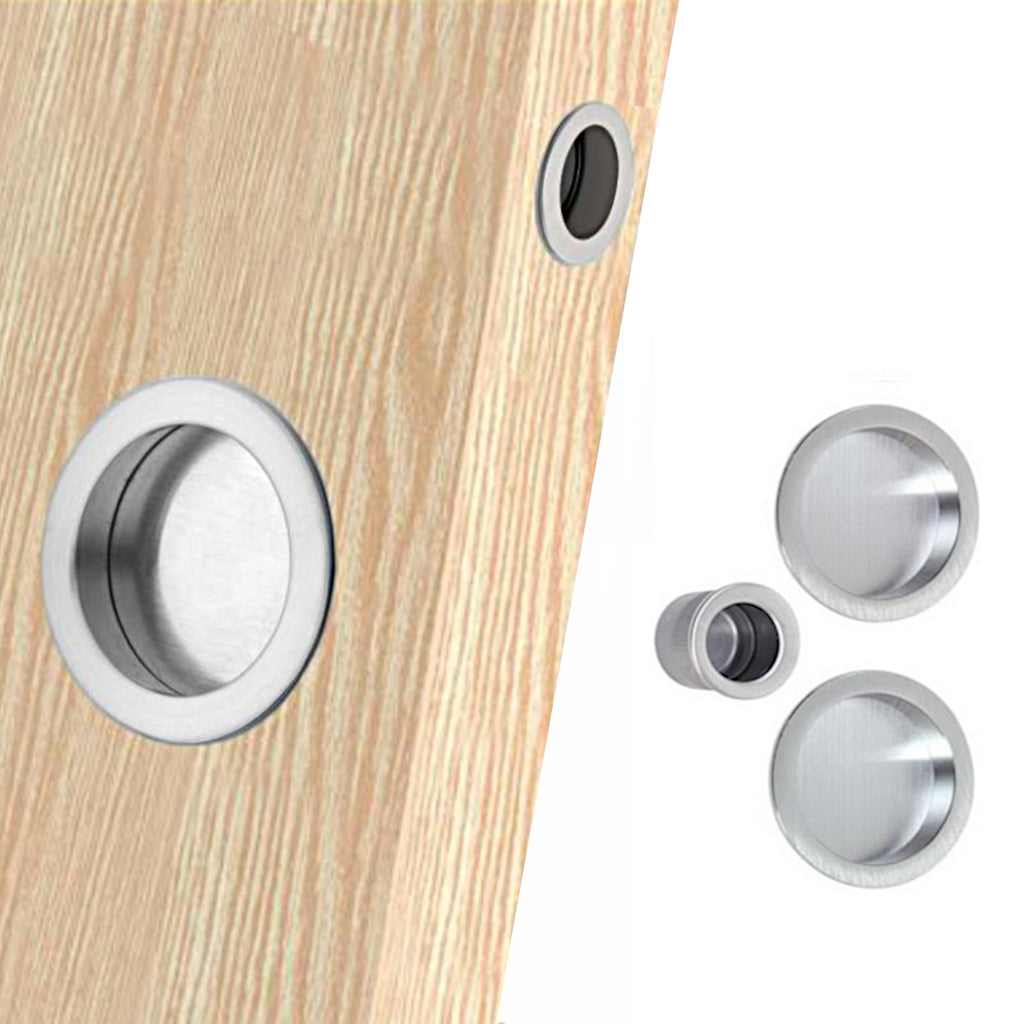

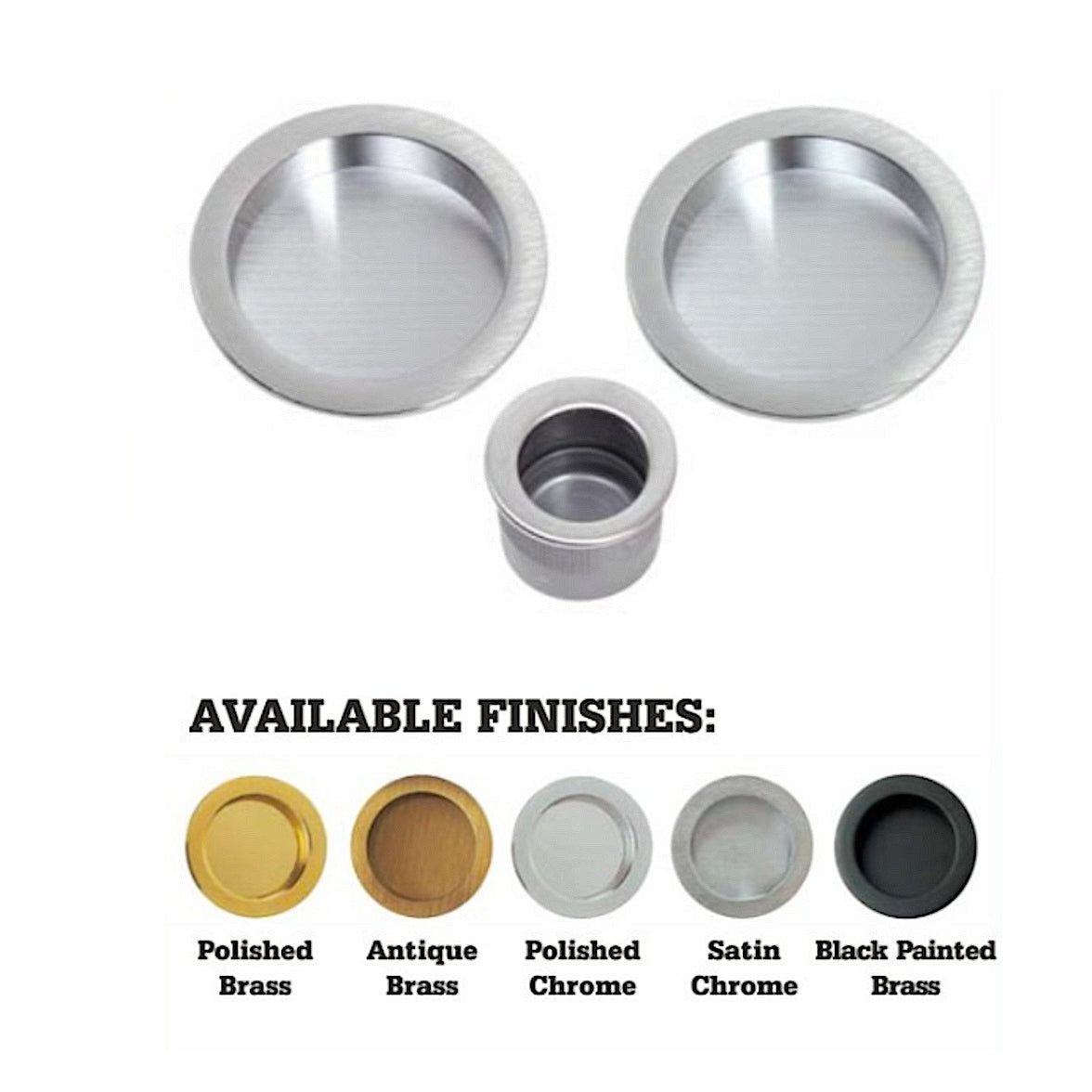

There is no bottom track or threshold strip, as with all our pocket door systems the single pocket door frame is top hung from a track. Inside the track there are runners which are attached to the top of the door via a bracket. This means there is no threshold strip or track in the floor and your flooring can continue through the opening undisturbed. Accessories such as soft door closers, flush door pulls and bathroom locks can all be purchased separately.
Door Specifications:
- Engineered construction for added strength, stability and performance
- Product supplied unfinished, ready to paint or stain
- A-Grade American White Oak Veneer
- Half hour fire rated door
- Toughened safety glass conforms to BS EN 12150
- Paint N Peel System for easy finishing
- 10 year manufacturers defect guarantee
- In the interest of environmental concerns and improved performance, products contain engineered components including but not limited to laminated timber
Set Includes:
- FD30 Set Supplied complete with fire rated pocket frame and fire rated door
- Set Includes Oak Shaker 4L Obscure Glazed Fire Door
- Set Includes fire rated pocket frame
- Maintenance-free track and runners
- Fully adjustable front and rear doorstop.
- Runners are tested to 100,000 cycles (that’s around 25 years of average use!)
- Anti-warp door profile
- 100mm Jambs (wall thickness)
- Self-centering floor guide
- 15 year guarantee on the complete steel pocket system and runners
- Fully tested and approved by International Fire Consultants PAR/10057/01
- Compatible with our self-closing mechanism
- Compatible BIAS Anti Slam Soft Close Mechanism
Overall Frame Dimensions with Door Panel Sizes (Width x Height)
762 x 1981 Door Panel = 1625 x 2056 mm Pocket Frame
838 x 1981 Door Panel = 1701 x 2056 mm Pocket Frame
Accessories
A fully approved self-closing mechanism is also available, please check first with your Building Inspector prior to ordering to determine whether or not your particular application will require a self-closer.
Made for use with standard UK door sizes, can be supplied in made to measure options. Please contact us for more information on bespoke options
Please be aware you may receive 2 deliveries, the frames are usually dispatched within 24/48 hours and the doors will be delivered within 3/5 working days.
