Industrial Style Extra Slim 8L Fire Rated Pocket Door System
Product Code: E24929
Industrial Style Extra Slim 8L Fire Rated Pocket Door System
Product Code: E24929
Industrial Style Extra Slim 8L Fire Rated Pocket Door System
This Fire Pocket Door System is supplied complete with the white Industrial Style 8L Fire Door. This door system allows you to slide the door straight in to the discreet pocket which is hidden within the cavity. The pocket frame is constructed from galvanised steel and is supplied complete with the track and fixings. The cassette system is supplied complete with a comprehensive timber lining kit (jambs) to finish the installation perfectly.
The door jambs are 100mm if you are using 3" studwork then you would require 100mm jambs as this would give you a finished wall thickness of 100mm when finished with 12.5mm plasterboard.
There is no bottom track or threshold strip, as with all our pocket door systems the single pocket door frame is top hung from a track. Inside the track there are runners which are attached to the top of the door via a bracket. This means there is no threshold strip or track in the floor and your flooring can continue through the opening undisturbed. Accessories such as soft door closers, flush door pulls and bathroom locks can all be purchased separately.

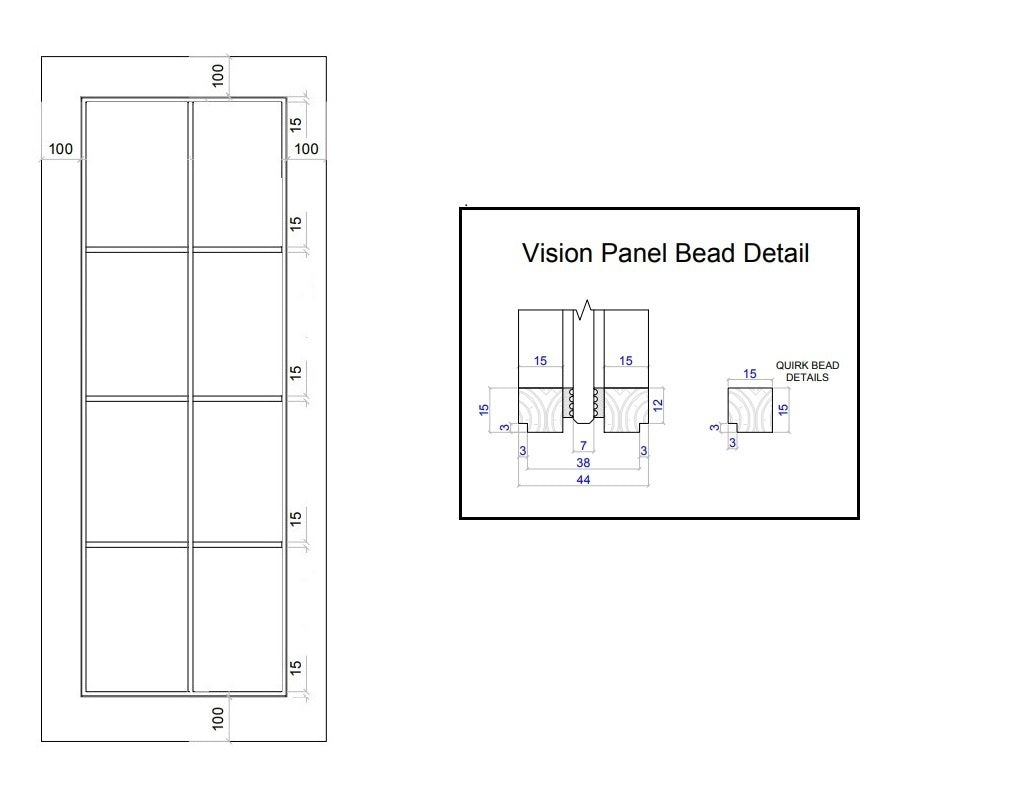

Door Specifications :
- Custom made to your requirements
- 15mm Extra Slim Rails
- 100mm Stile Size (Outer Edge)
- FD30 - 30 Minutes Fire Rating
- Clear Fire Glass
- Obscure Fire Glass Available
- Supplied White Primed Ready for Final Finish
- Matching Frame Available
- Black VP intumescent seals
- Available in 4L Design
- Matching Double Doors Also Available
Set Includes :
- Set Includes Custom Made White 8L Industrial Style Fire Door
- FD30 - 30 Minutes Fire Rated Door System
- 100mm Jambs (wall thickness)
- 44mm Thick Door
- Strong galvanised steel frame. A quick-click frame that assembles into a complete unit comprising of a full pocket and track.
- Runners are tested to 100,000 cycles (that’s around 25 years of average use
- Can be adjusted to determine how far the door protrudes from the pocket.
- The jamb kit is made from finger jointed fir that is unfinished ready to paint/stain.
- Door guide slots into a channel on the underside of the door. Not visible but ensures that if your door warps it continues to slide smoothly
- 15 year guarantee on the complete pocket door system and runners
Overall Frame Dimensions with Industrial Style 8L Fire Door (Width x Height)
610 x 1981 Door Panel = 1273 x 2056 mm Pocket Frame
686 x 1981 Door Panel = 1449 x 2056 mm Pocket Frame
762 x 1981 Door Panel = 1625 x 2056 mm Pocket Frame
838 x 1981 Door Panel = 1701 x 2056 mm Pocket Frame
626 x 2040 Door Panel = 1288 x 2115 mm Pocket Frame
726 x 2040 Door Panel = 1488 x 2115 mm Pocket Frame
826 x 2040 Door Panel = 1688 x 2115 mm Pocket Frame
Accessories
A fully approved self closing mechanism is also available, please check first with your Building Inspector prior to ordering to determine whether or not your particular application will require a self-closer.
Our Pocket door systems can be supplied in made to measure options. Please contact us for more information on bespoke options.
Please be aware you may receive 2 deliveries, the frames are usually dispatched within 24/48 hours and the doors will be delivered in approx 8-10 weeks.
